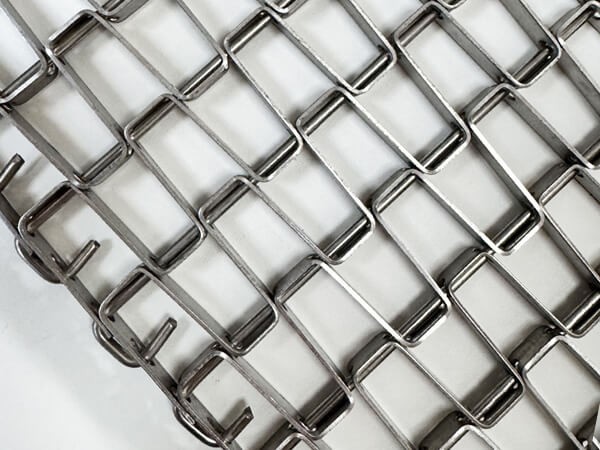

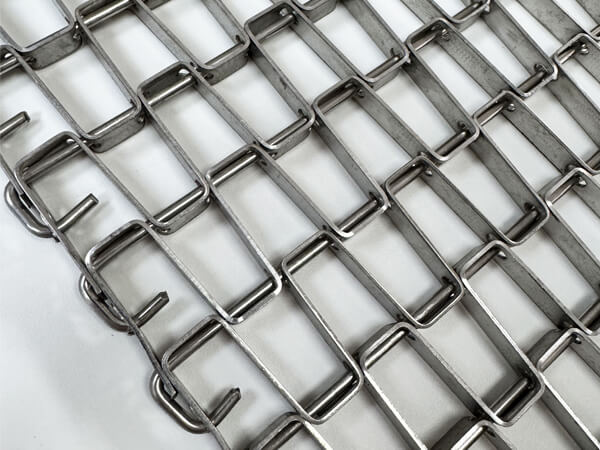

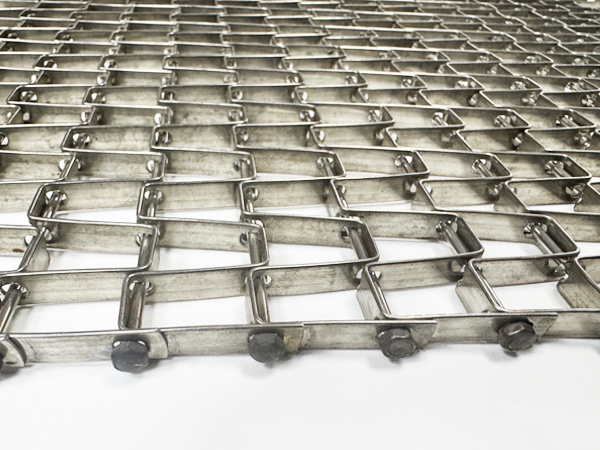

Honeycomb (Flat Wire) Conveyor Belts

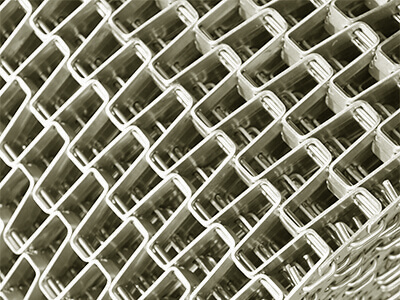

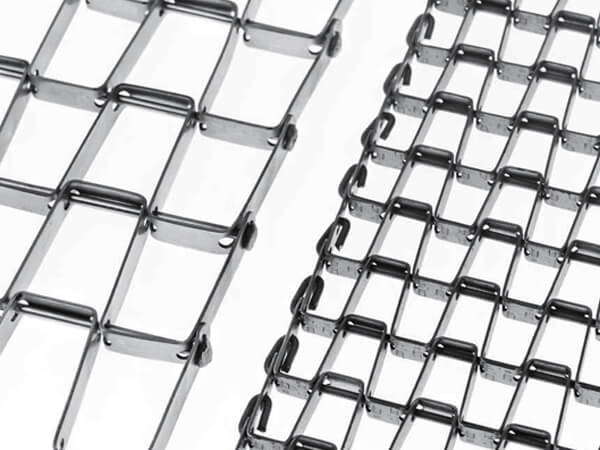

PFM Screen began manufacturing honeycomb conveyor belt in 1987, and they are still among the most versatile and most economical straight-running belts available.

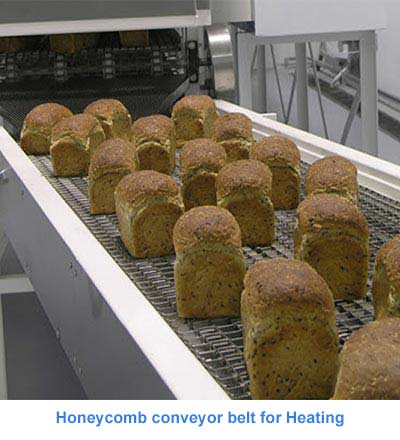

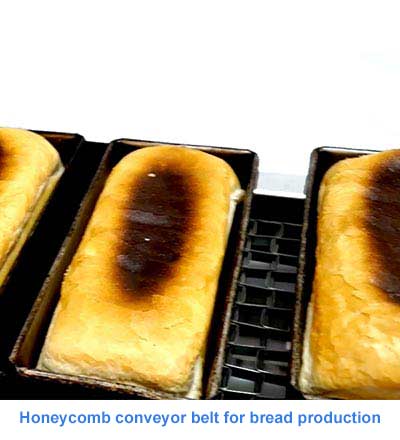

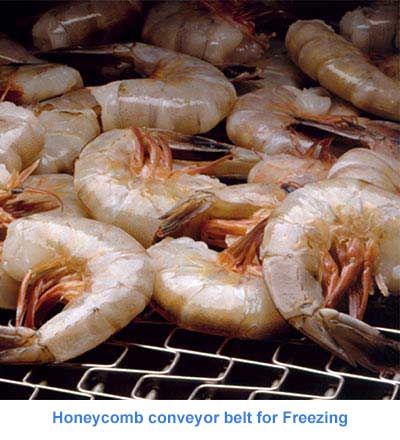

Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using. Honeycomb belts are used in production processes with temperatures of -30ºC up to +400ºC in food and other industries.

Honeycomb conveyor belt Advantages:

• Twice the life of competitive belts

• Installation requires no special tools

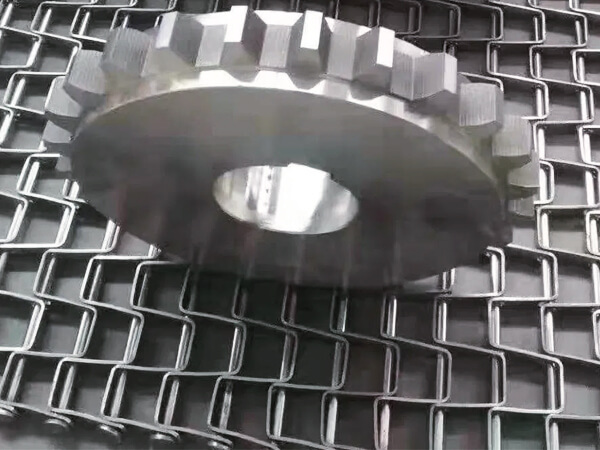

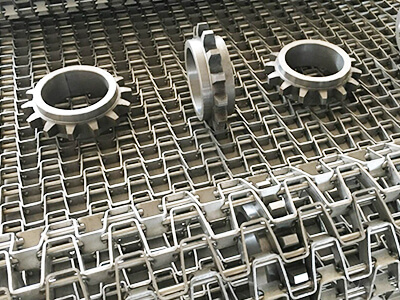

• Positive driven for excellent belt tracking

• Up to 81% open area for excellent flow through

• Allows for tight transfers

• Available up to 150 inches wide

• High strength-to-weight ratio

• Welded button edge or clinched edge

• Flat carrying surface

• Easy to clean and to install

• Easily joined

• Strong edge reduces snagging or catching on conveyor protrusions

Edge Availability

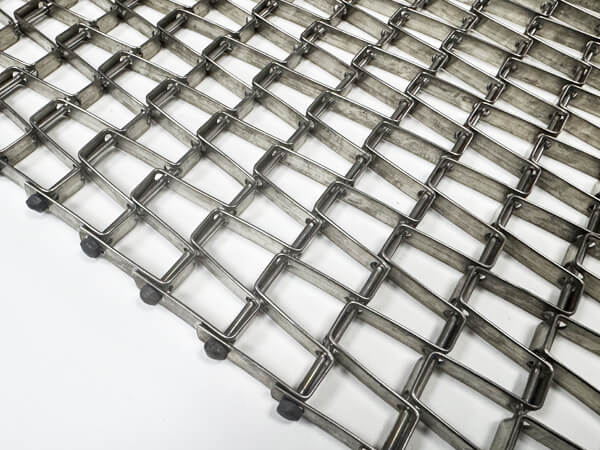

Honeycomb belt with welded edges

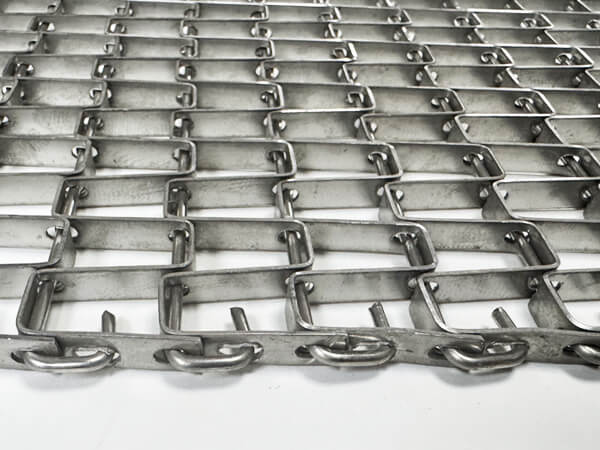

Honeycomb belt with clinged edges

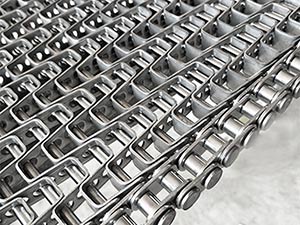

Honeycomb belt with Chain edges

Material Availability
The Honeycomb belts is standard made of mild steel, galvanised mild steel, stainless steel AISI 304 and AISI 316.The belt needs minimal maintenance and will have a working life of many years, if used well.

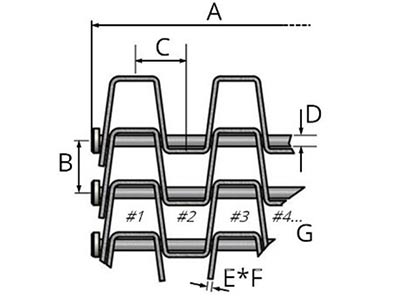

Specifications

A: Overall Width (mm)                                    B: Cross Rod Pitch (mm)

                                                                C: Nominal Lateral Pitch (mm)                          D: Cross Rod Diameter (mm)
                                                                E: Height of flat strip material (mm)                  F: Thickness of flat strip material (mm)
                                                                G: Number of Apertures Across Width (mm)

● Waste handling systems
